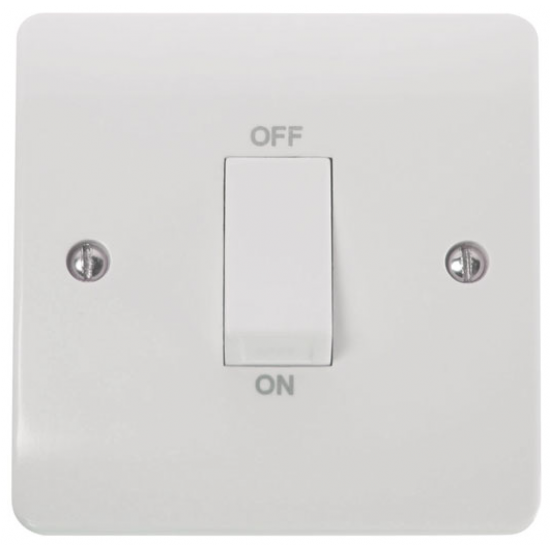

Click Mode 45 Amp Double Pole Single Plate Switch with White Rocker

Click Mode 45 Amp Double Pole Single Plate Switch

Click CMA500 45A 1 Gang Double Pole Plate Switch with White Rocker

The smooth, modern lines of the CLICK^® MODE^TM accessory plate will fit easily into traditional and contemporary designs alike. The modular design of CLICK^® MODE^TM allows designers and installers unprecedented flexibility in creating dedicated wiring solutions to deal specifically with actual wiring needs. In other words, there is now no need to compromise CLICK^® MODE^TM Accessories provide the complete solution to modern wiring needs.

General Information:

Plate Dimensions: (mm) 86 (W) x 86 (H) x 9.5 (D)

Plate Fixing Centres: - Horizontal (mm) 60.3

Style: Rounded Profile

Finish: Polar White

Anti-Microbial: Certified Yes

Rated Voltage: (V~) (Ue) 250 Frequency (Hz) 50

Resistive Load Rating: (A) 45

Termination Type: Screw

Terminal Size: (mm) Ø6 Terminal Torque Value (Nm) 2.5

Terminal Capacity: - Solid (mm²) 1 x 16

Double Pole Switch: Yes

Twin Earth Terminals: Yes

Product Marking: On & Off

Minimum Back Box Depth: (mm) 35

Ingress Protection: IP20

Operational Temperature: (°C) -5 to +40

Warranty: (Years) 20
