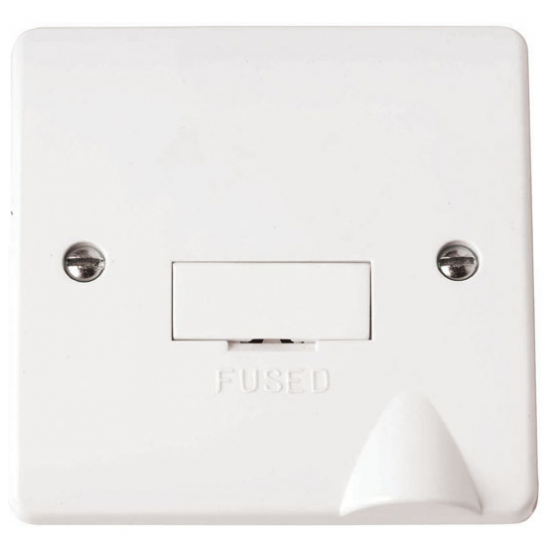

Click Mode 13 Amp Un-Switched Fused Spur with Flex Outlet

Click Mode 13 Amp Un-Switched Fused Spur with Flex Outlet

Click CMA050 13A Fused Connection Unit with Optional Flex Outlet

The smooth, modern lines of the CLICK^® MODE^TM accessory plate will fit easily into traditional and contemporary designs alike. The modular design of CLICK^® MODE^TM allows designers and installers unprecedented flexibility in creating dedicated wiring solutions to deal specifically with actual wiring needs. In other words, there is now no need to compromise CLICK^® MODE^TM Accessories provide the complete solution to modern wiring needs.

General Information:

Plate Dimensions: (mm) 86 (W) x 86 (H) x 9.5 (D)

Plate Fixing Centres: - Horizontal (mm) 60.3

Style: Rounded Profile

Finish: Polar White

Materials: Front Plate & Fuse Drawer: Urea Rear Housing: Urea

Terminals: Brass Terminal Screws: Steel & Yellow Passivated

Internal Busbars: Formed Pressed Brass Earth Strap: Mild Steel

Anti-Microbial Certified: Yes

Rated Voltage: (V~) (Ue) 250 Frequency (Hz) 50

Resistive Load Rating: (A) 13

Fuse Fitted Rating & Type: 13A (BS 1362)

Terminal Capacity: - Solid (mm²) 3 x 2.5 or 2 x 4

Switched: No

Twin Earth: Terminals Yes

Flex Outlet Available: Yes

Flex Outlet Location: Bottom of Plate Flex Outlet Dimension: (mm) Ø10

Minimum Back Box Depth: (mm) 25

Ingress Protection: IP20

Operational Temperature: (°C) -5 to +40

Warranty: (Years) 20
