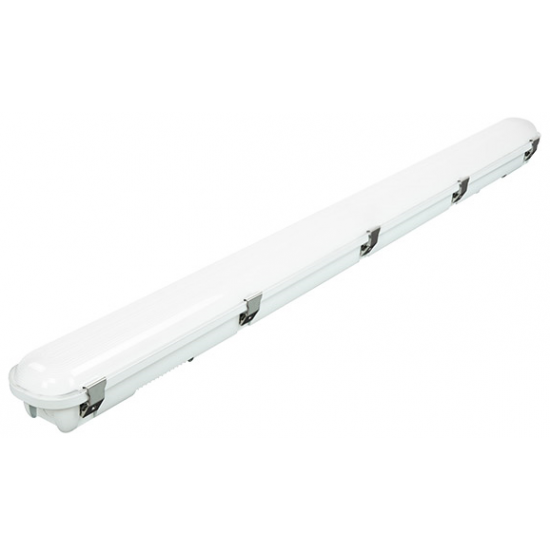

OV80121-Ovia-Lighting-21Watt-1200MM-LED-IP65-LINEAR-4000K

Ovia’s non-corrosive design, protected against the elements, U-Lite fittings are available in 3 different lengths and each length is available in a single fluorescent lamp equivalent and a twin lamp equivalent output.

By integrating the diffuser & gear tray and anchoring them to the base, the U-Lite ensures a hassle-free installation. Complete your installation without having to fully disassemble the product to mount and wire it. Never lose parts! With everything you need pre-fitted to the base you’ll never have to worry about misplaced control gear.

Ovia’s U-Lite LED lights are suitable for wall, ceiling or suspension mounting and its adjustable fixing centres allow for easy retrofit instalment.

The addition of Push Fit Terminals offers fast, simple and clear installation.

General Information

Dimensions 1200mm (L) x 96mm (W) x 83mm (D)

Materials Base: Polycarbonate

Frosted Diffuser: Polycarbonate

Base Finish Light Grey

Product Weight 1.56Kg

Dimmable No

Ingress Protection IP65

IK Rating IK08

Mounting Ceiling, Wall or Suspended

Warranty 5 Years

Supply & Power

Input Voltage & Frequency 230V~ 50Hz

Electrical Safety Class I

LED Wattage 21W

Circuit Wattage 21W

Input Current 105mA

Inrush Current 6A (268ms)

Power Factor >0.9

Ambient Temperature (Ta) -20°C - +40°C

Critical Temperature +90°C

Terminations 4 Pole Push Fit Terminal Block

Cable Input Component 20mm IP68 Nylon Gland Supplied

Fixing Components Surface and Suspension Brackets Supplied

Luminaire Output

Colour Temperature 4000K

CRI >80

Typical Luminous Flux 2520lm

Efficacy 120lm/W

Beam Angle 105°

LED Lifetime (L70) 50,000 Hours

Fixing Components Surface and Suspension Brackets Supplied
