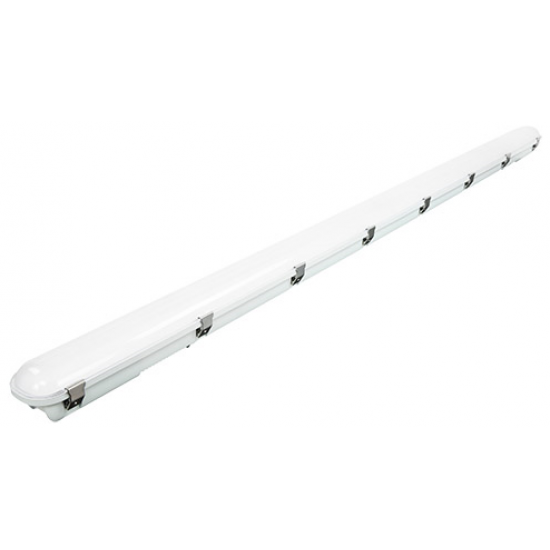

OV80181MW Ovia Lighting 34Watt 1800MM LED IP65 LINEAR 4000K Microwave Sensor

General Information

Dimensions 1800mm (L) x 96mm (W) x 83mm (D)

Materials Base: Polycarbonate

Frosted Diffuser: Polycarbonate

Base Finish Light Grey

Product Weight 2.33Kg

Dimmable No

Ingress Protection IP65

IK Rating IK08

Mounting Ceiling, Wall or Suspended

Warranty 5 Years

Supply & Power

Input Voltage & Frequency 230V~ 50Hz

Electrical Safety Class I

LED Wattage 34W

Circuit Wattage 34W

Input Current 170mA

Inrush Current 7A (408ms)

Power Factor >0.9

Ambient Temperature (Ta) -20°C - +40°C

Critical Temperature +90°C

Terminations 5 Pole Push Fit Terminal Block

Cable Input Component 20mm IP68 Nylon Gland Supplied

Fixing Components Surface and Suspension Brackets Supplied

Luminaire Output

Colour Temperature 4000K

CRI >80

Typical Luminous Flux 4080lm

Efficacy 120lm/W

Beam Angle 105°

LED Lifetime (L70) 50,000 Hours

Fixing Components Surface and Suspension Brackets Supplied

Microwave Information

Mounting Height 6M (Ceiling), 3M (Wall) (Recommended)

Detection Angle 30° - 150°

Detection Range 14M (Ceiling), 10M (Wall)

Detection Area 10% / 50% / 75% / 100% (DIP Switch Setting)

Hold Time 5s / 90s / 5min. 15min. (DIP Switch Setting)

Daylight Threshold 2Lux / 10Lux / 50Lux / Disable (DIP Switch Setting)

HF System 5.8GHz ±75MHz

Master/Slave Facility Up to 400W
