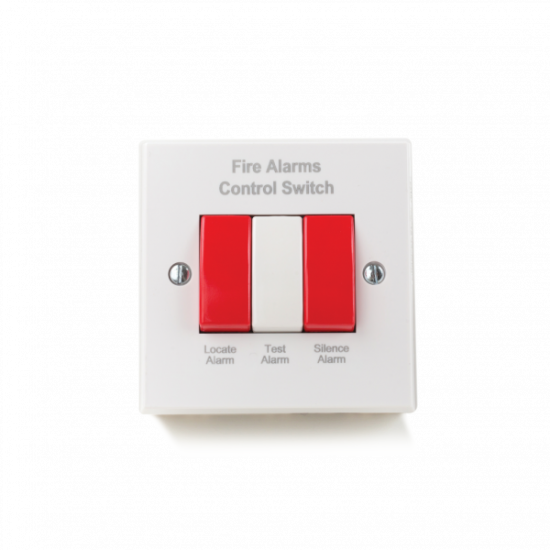

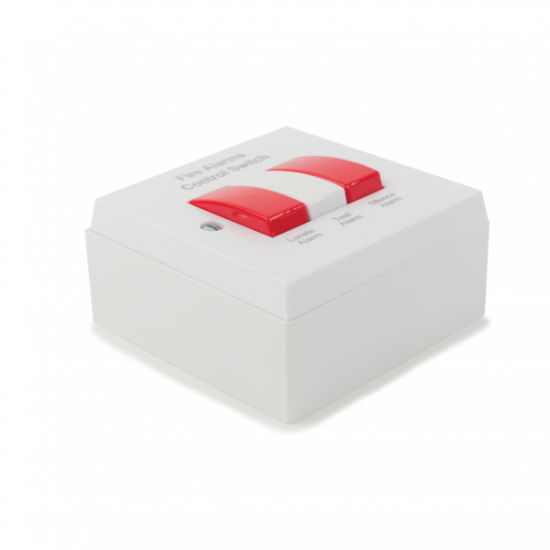

Aico EI1529RC Hard Wired Alarm Control Switch

Ei1529RC Hard Wired Alarm Control Switch

Install as part of the system to get more control over your alarms

Mains powered

Hard wired interconnection

Test, Locate and Silence

Compatible with 3000, Ei2110e Multi-Sensor Fire Alarm, 160e Series alarms, 140e Series alarms and hard wired interconnected Carbon Monoxide alarms

Product Description

Why use an alarm control switch?

The Ei1529RC is used to control all the alarms in a system from one place. We highly recommend fitting a control switch if you have smoke, heat and carbon monoxide alarms on the same system as it’s essential that you can tell which alarm has sounded. From here you can identify which danger is present and the action you should take

Test, Locate and Silence

This mains powered accessory increases the flexibility and user friendliness of the alarms by allowing the user to remotely Test, Locate and Silence alarms in the system:

Test – The alarm system

Locate – The alarm that has been activated

Silence– Any nuisance alarms

This model of Control Switch is hard wired into the system, but there are wireless versions available.

Technical Specification

Compiles with electrical safety requirements: EN61000-6-1:2007 Et EN61000-6-2:2005 (EMC Directive) and EN60065:2001 + A12:2011 (Low voltage directive).

Carries the CE mark to indicate conformance to

Low Voltage and Electromagnetic Compatibility Directives.

Wall mounted for ease of use – can be fixed with surface mount box supplied, or will fit a standard recessed box (not supplied).

Suitable for siting at any convenient point in the property. Up to 4 x Ei1529RC switches can be installed in a hardwired system along with a maximum of 16 x 3000, 2110e, 160e or 140RC

Series smoke and heat alarms or 261ENRC Carbon Monoxide alarms.

The unit incorporates 3 switches marked ‘Locate’, ‘Test’ and ‘Hush’. These provide control features as detailed below and a mains check function as detailed below.

Easily installed via a 3 wire connection of live,

Neutral and Interconnect/Control (as standard smoke/heat alarm wiring).

Dimensions: 90mm x 90mm x 40mm deep.

Weight inclusive of packaging: 240g.

Manufactured in Ireland.
