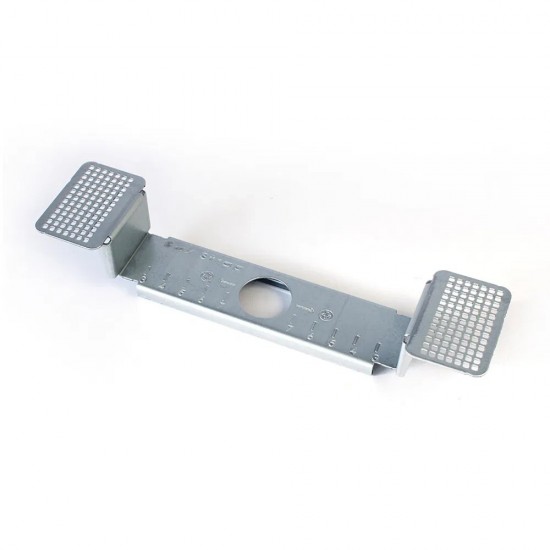

220514 Box Strap Bracket

220514 Boxstrap bracket

If you're fed up of the difficulty that comes with mounting metal back boxes on plasterboard walls, the Termination Technology Box Strap Bracket is the product to make the job easier.

This bracket allows you to securely install single or double metal back boxes without the need to cut around them, saving time and effort.

Crafted from pre-galvanised DX54+Z100 steel, with Its fixed 26mm depth it is perfect for accommodating 35mm back boxes, and if you're working with 47mm boxes, simply use plasterboard off-cuts as spacers to make it fit.

With a single-layer pull test rating of 40kg for 15mm plasterboard and a double-layer rating of 80kg for 30mm plasterboard. it will hold up under substantial loads, providing peace of mind for your install.

Packaging Type: Bundle of 50 units

Steel Specification: DX54+Z100 to EN10346-2015

Single Layer Pull Test: 40kg (15mm Plasterboard)

Double Layer Pull Test: 80kg (30mm Plasterboard)

Manufactured to ISO9001-2015

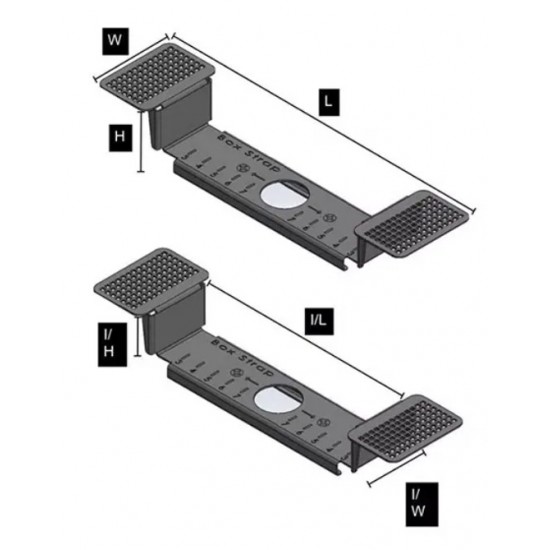

Height (H): 34mm

Width (W): 50mm

Length (L): 207mm

Inner Height (I/H): 26mm

Inner Width (I/W): 36mm

Inner Length (I/L): 135mm

Material Thickness: 1mm
