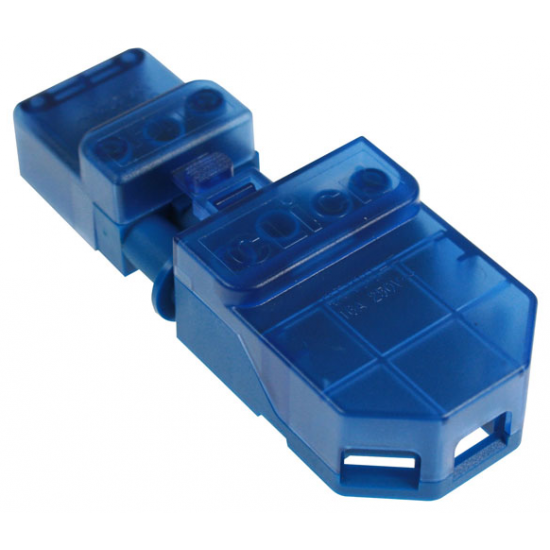

Scolmore CT101C Click Flow Split Connector 20A 3-Terminal

Scolmore CT101C Click Flow Split Connector 20A 3-Terminal

This connector makes installation that much quicker and easier to work on saving time and money.

Materials Cover: Polycarbonate

Base & Terminal Housing: Nylon (PA66)

Terminals: Silver Plated Brass

Rated Voltage (V~) (Ue) 250 Frequency (Hz) 50

Resistive Load Rating (A) 20

Rated Impulse Voltage (kV) 4

Recommended Inner Core Strip Length (mm) Male: L&N: 20; E: 28; Female: L&N: 35; E: 43

Recommended Conductor Strip Length (mm) 10

Termination Type Screw

Terminal Size (mm) Ø4.2 Terminal Torque Value (Nm) 0.8

Terminal Capacity - Solid (mm²) 3 x 2.5

Terminal Capacity - Flex (mm²) 3 x 1.5

Termination Layout (Male) (CT101M) N - E - L

Termination Layout (Female) (CT100F) L - E - N - Loop

Cable Restraint Supplied On Male Only

Ingress Protection IP20

Operational Temperature (°C) -5 to +40

Warranty 10 years
