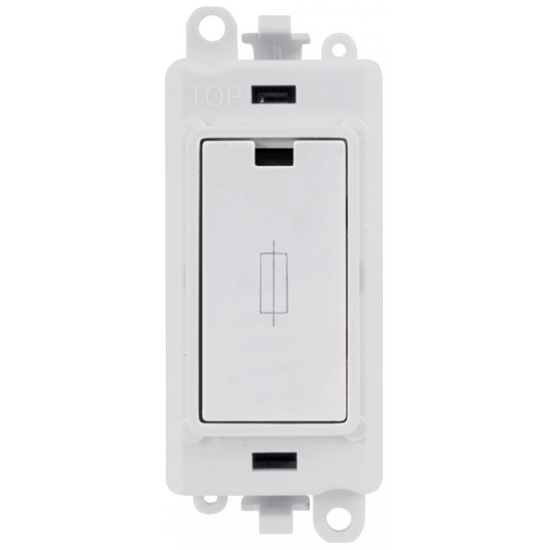

Click 13 Amp Fuse Module

Click 13 Amp Fuse Module

Product Code: GM2047PW Description: 13A Fused Connection Module

General Information:

Dimensions: (mm) 24.5 (W) x 50 (H) x 25 (D)

Finish: Polar White

Insert Colour: Polar White

Materials Body & Insert: Nylon Internal Busbars: Brass

Terminals: Brass Terminal Screws: Steel & Yellow Passivated

Anti-Microbial Certified: No

Rated Voltage: (V~) (Ue) 250 Frequency (Hz) 50

Resistive Load Rating: (A) 13

Fuse Fitted Rating & Type: 13A (BS 1362)

Termination Type: Screw

Terminal Size: (mm) Ø5 Terminal Torque Value (Nm) 1.2

Terminal Capacity: - Solid (mm²) 3 x 2.5, 2 x 4

Product Marking: Fused Symbol

Minimum Back Box Depth: (mm) 25 (35 Flat Plate)

Ingress Protection: IP20

Operational Temperature: (°C) -5° to +40°

Warranty (Years): 10

Standards: BS 1363-4

BS 1362
