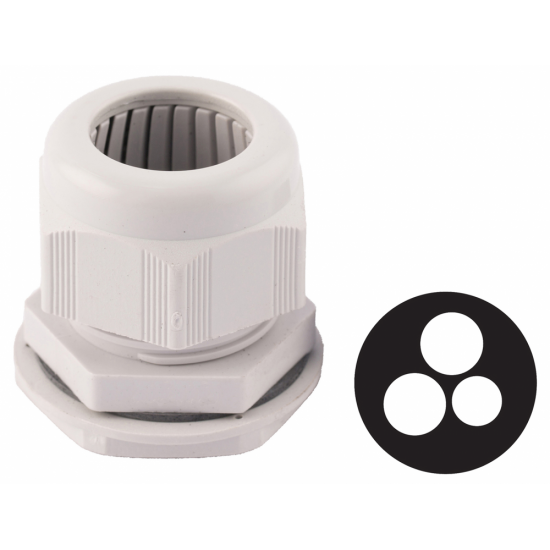

White Nylon 32mm Meter Tail Glands With Plug

White Nylon 32mm Meter Tail Glands with Plug

Unicrimp QCGM32TPW Consumer Unit Gland

Features

• Suitable for 16mm² or 25mm² double insulated meter tails
• Nylon cable gland suitable for use with metal consumer units
• Provides additional support and supplementary insulation similar to Class II construction for the incoming meter tails

Dimensions:

Spanner Size (mm) 42

Threaded Diameter (mm) 32

Threaded Entry Length (mm) 14.7

General Information:

Colour White (RAL 9003)

Suitable Cable Size (mm²) Line & Neutral: 25

CPC: 16 (Plug Provided if No CPC Available)

Recommended Cap Tightening Torque (Nm) 5

Ingress Protection IP68

Temperature Rating (°C) 0 to +80
