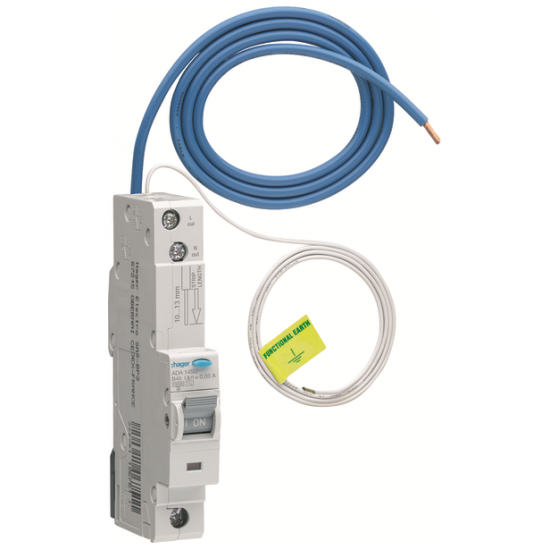

Hager 45A 30mA 10kA RCBO (A) B Curve

The Hager ADA145U Is a 45A RCBO Type A, B curve single pole, single module Compact protection device which combines the overcurrent functions of an MCB with the earth fault functions of an RCCB in a single circuit protection device.

Technical characteristics:

Architecture:

Neutral position: right

Number of poles: 1

Fixing mode: DIN rail type O (symmetrical)

Curve: B

Main electrical features:

Rated operational voltage: Ue 230 / 240 V

Frequency: 50 Hz

Rated current: 45 A

Voltage:

Rated insulation voltage: 250 V

Max operating voltage: 253 V

Rated impulse withstand voltage: 4000 V

Electric current / temperature:

Rating current: 30°C 45 A

Dimensions:

Depth of installed product: 70 mm

Height of installed product: 115 mm

Width of installed product: 17,5 mm

Safety:

Protection index: IP IP20

Residual current type: A
