Hager 25A Single Pole MCB 10kA B Type

Hager 25A Single Pole MCB 10kA B Type

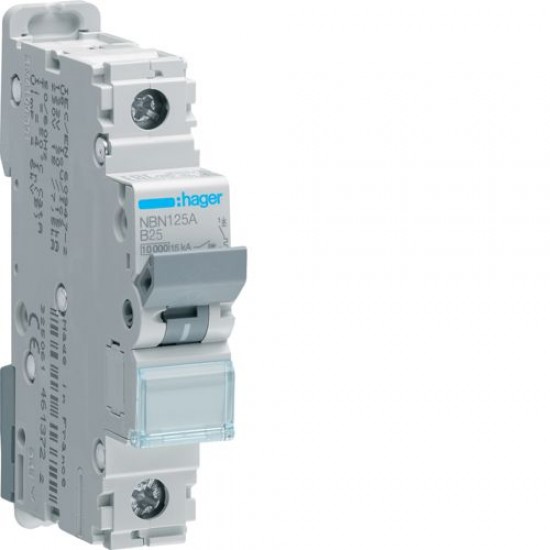

The Hager NBN125A Is a Single Pole Miniature Circuit Breaker (MCB)

For use in Hager Consumer Units, Single and 3 Phase Distribution Boards.

Technical characteristics:

Neutral position: without neutral

Number of poles: 1

Fixing mode: Din-Rail

Curve: B

Main electrical features:

Rated current: 25 A

Rated insulation voltage: 500 V

Rated impulse withstand voltage: 6000 V

Dimensions:

Depth of installed product: 70 mm

Height of installed product: 83 mm

Width of installed product: 17,5 mm

Number of modules: 1

Tightening torque: 2,8Nm

Can be accessorized: Yes

European directive: WEEE concerned

Protection index IP IP20

Operating temperature: -25…70 °C
