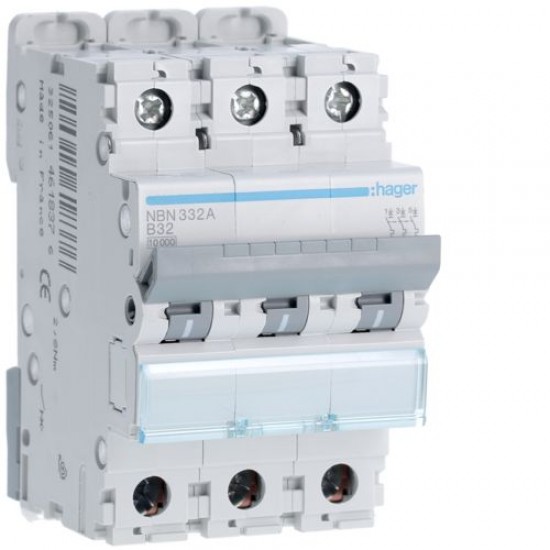

Hager 32A Triple Pole MCB 10kA B Curve

Hager 32A Triple Pole MCB 10kA B Curve

The Hager NBN332A Is a 32A Triple Pole Miniature Circuit Breaker

For use in Hager 3 Phase Distribution Boards.

Technical characteristics:

Architecture:

Neutral position: without neutral

Number of poles: 3

Fixing mode: Din-Rail

Curve: B

Main electrical features:

Rated operational voltage: 400 V

Rated current: 32 A

Rated insulation voltage: 500 V

Rated impulse withstand voltage: 6000 V

IEC 60898-1 7,5 kA

Electric current / temperature:

Rating current 30°C 32 A

Dimensions:

Depth of installed product 70 mm

Height of installed product 83 mm

Width of installed product 52,5 mm

Number of modules: 3

Tightening torque: 2,8Nm

Can be accessorized: Yes

European directive: WEEE concerned

Operating temperature -25…70 °C
