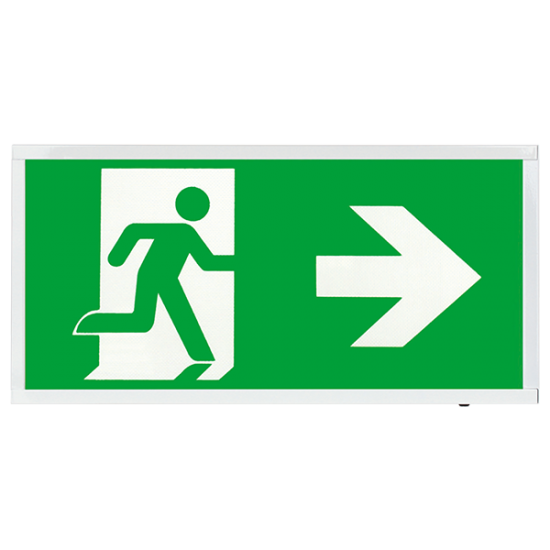

Ovia Lighting OVEM5311WHR 4w Emergency LED Boxed Exit sign arrow right

CALVEX

4W Emergency LED Box Maintained Sign White Right Legend

General Information

Dimensions (mm) 390 (W) x 60 (D) x 190 (H)

Materials Housing: Powdercoated Steel; Sign: Acrylic

Finish White

 Product Weight (Kg) 1.5

Ingress Protection IP20

Warranty (Years) 4

Supply & Power Information

Input Voltage & Frequency (V~ / Hz) 220-240 50/60

Safety Class I

Circuit Wattage (W) 4

Operation Mode Maintained or Non-maintained

Cable Entry 2 x Ø20mm Knockouts

Operating Temperature (°C) 0 to +40

Maximum Critical Temperature (°C) +70

Luminaire Output

Colour Temperature (K) 5500

Typical Luminous Flux (lm) 45

Beam Angle (°) 100

Viewing Distance (M) 34

LED Lifetime (L70) (Hours) 30000

Emergency Backup Information

Emergency Luminous Flux (lm) 40

Battery Specification 3.6V 1500mAh Ni-Cd Battery - Parallel

Minimum Duration (Hours) 3

Compatible Accessories

OVEMB3615NCP - 3.6V 1500mAh Ni-Cd Battery - Parallel
