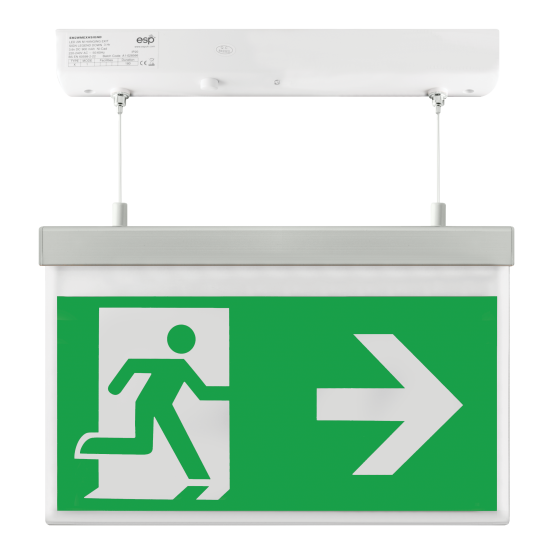

Ovia Lighting OVEM4211L/R LED Exit sign suspended arrow left/right 2w

VANEX

2W Emergency LED Maintained Suspended Sign Left/Right Legend

General Information

Dimensions (mm) 300 (W) x 45 (D) x 700 (H)

Materials Housing: Polycarbonate; Support Bar:

Aluminium; Sign: Acrylic

Finish White

 Product Weight (Kg) 0.89

Ingress Protection IP20

Warranty (Years) 4

Supply & Power Information

Input Voltage & Frequency (V~ / Hz) 220-240 50/60

Safety Class II

Circuit Wattage (W) 2

Operation Mode Maintained or Non-maintained

Cable Entry Rear Aperture

Operating Temperature (°C) 0 to +40

Maximum Critical Temperature (°C) +70

Luminaire Output

Colour Temperature (K) 5500

Typical Luminous Flux (lm) 40

Beam Angle (°) 100

Viewing Distance (M) 26

LED Lifetime (L70) (Hours) 30000

Emergency Backup Information

Emergency Luminous Flux (lm) 30

Battery Specification 3.6V 900mAh Ni-Cd Battery - Parallel

Minimum Duration (Hours) 3

Compatible Accessories

OVEMSP002 - Wall Bracket For Exit Signs

OVEMB3609NCP - 3.6V 900mAh Ni-Cd Battery - Parallel
