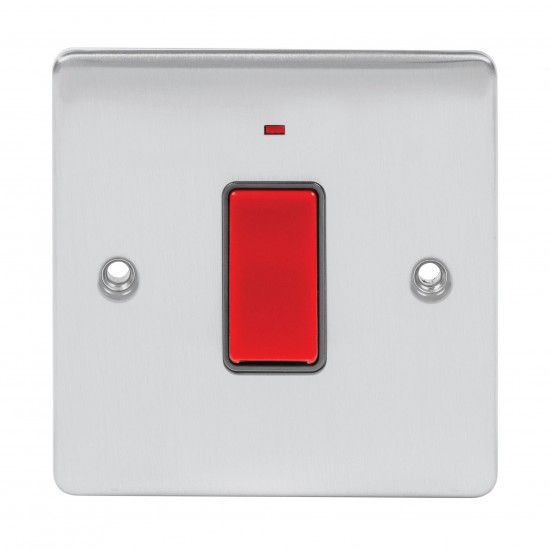

Niglon 45 Amp Single Switch Neon Brushed Chrome

Niglon 45 Amp Single Switch Neon Brushed Chrome

Niglon D-SP45DPN-BCG Single Switch with LED

The Premium Edge S Range

A contemporary low-profile design, manufactured with stainless steel faceplates, in a luxurious brushed chrome effect finish.

These switches come with flush LED neon’s and are suitable for domestic or commercial applications.

Technical Specifications:

Material Composition:

Front Plate: Stainless Steel

Rear Housing: Urea

Terminals: Brass

Earth Strap: Mild Steel

Terminal Screws: Steel & Yellow Passivated Silver “on-lay”

Copper/Brass Contacts

Voltage: 240V ~ 50Hz

Current Rating: 45A

Terminal Size: 6mm

Torque Value: 2.5Nm

Cable Size: 4x4mm2, 3x2.5mm2 or 1 x 10mm2

Back Box Depth: 25mm - 47mm

Double Pole: Yes

Twin Earth: Yes

IP Rating: IP20

Warranty: 20 years
