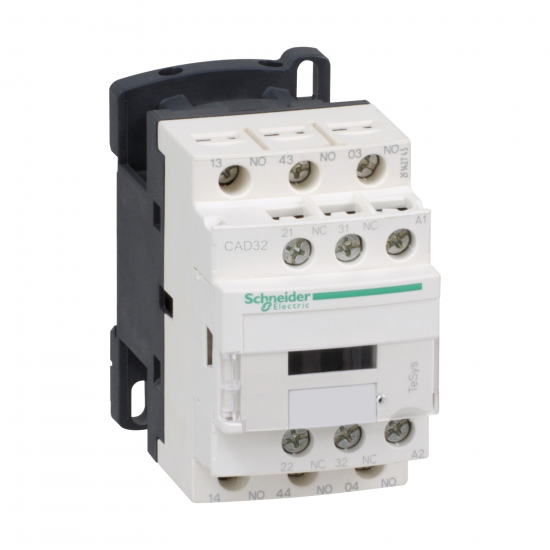

Schneider Control Relay 230V 50/60Hz

TeSys D control relay - 3 NO + 2 NC

Utilisation category DC-13

AC-15

AC-14

Pole contact composition 3 NO + 2 NC

[Ue] rated operational voltage <= 690 V AC 25...400 Hz

Control circuit type AC at 50/60 Hz

[Uc] control circuit voltage 230 V AC 50/60 Hz

[Uimp] rated impulse withstand

voltage

6 kV conforming to IEC 60947

[Ith] conventional free air

thermal current

10 A (at 60 °C)

Irms rated making capacity 140 A AC conforming to IEC 60947-5-1

250 A DC conforming to IEC 60947-5-1

[Icw] rated short-time withstand

current

100 A - 1 s

120 A - 500 ms

140 A - 100 ms

Associated fuse rating 10 A gG conforming to IEC 60947-5-1

[Ui] rated insulation voltage 600 V UL certified

600 V CSA certified

690 V conforming to IEC 60947-5-1
